Cleanroom Doors & View Panels

Engineered for airtight, safe, and contamination-controlled spaces.

Industrial-Grade Cleanroom Doors for Stringent Standards

Our door systems are designed to meet the demanding requirements of ISO 14644, EU GMP, and FDA-regulated cleanrooms. Built with cleanroom-compatible materials, our doors ensure zero particle generation, airtight sealing, and effortless integration with wall partitions.

Available Configurations:

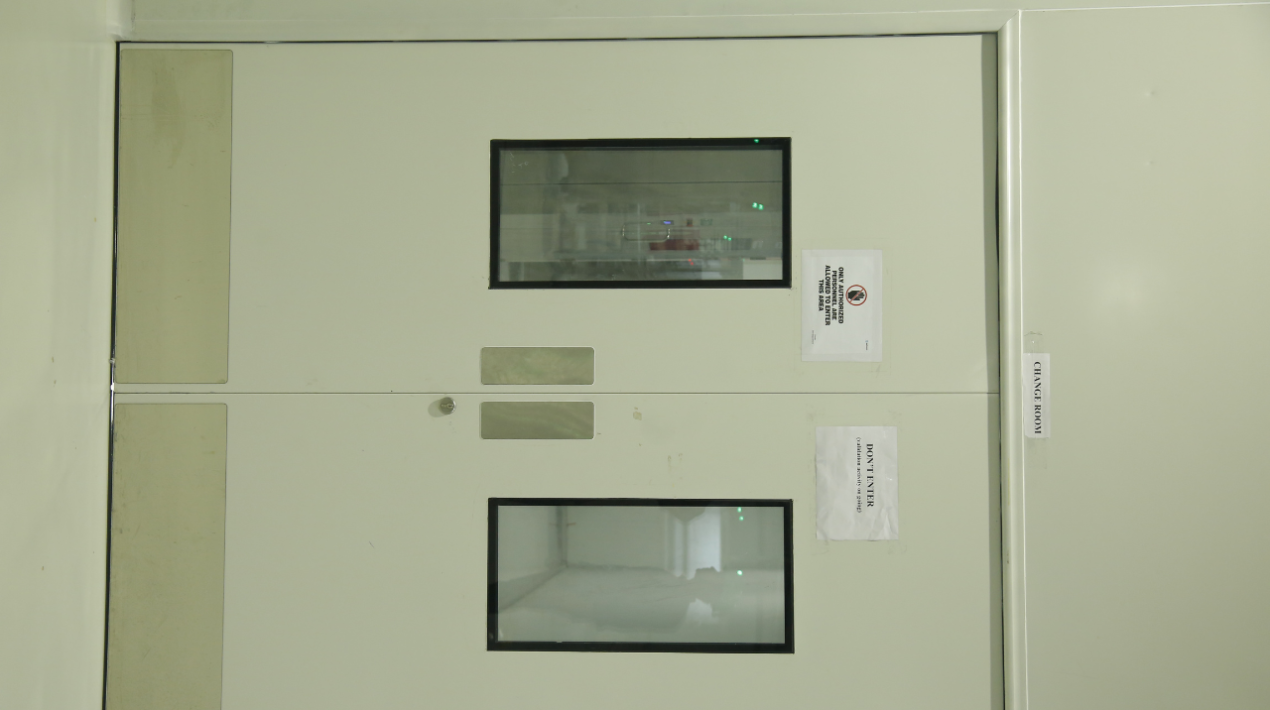

Single-leaf and double-leaf swing doors.

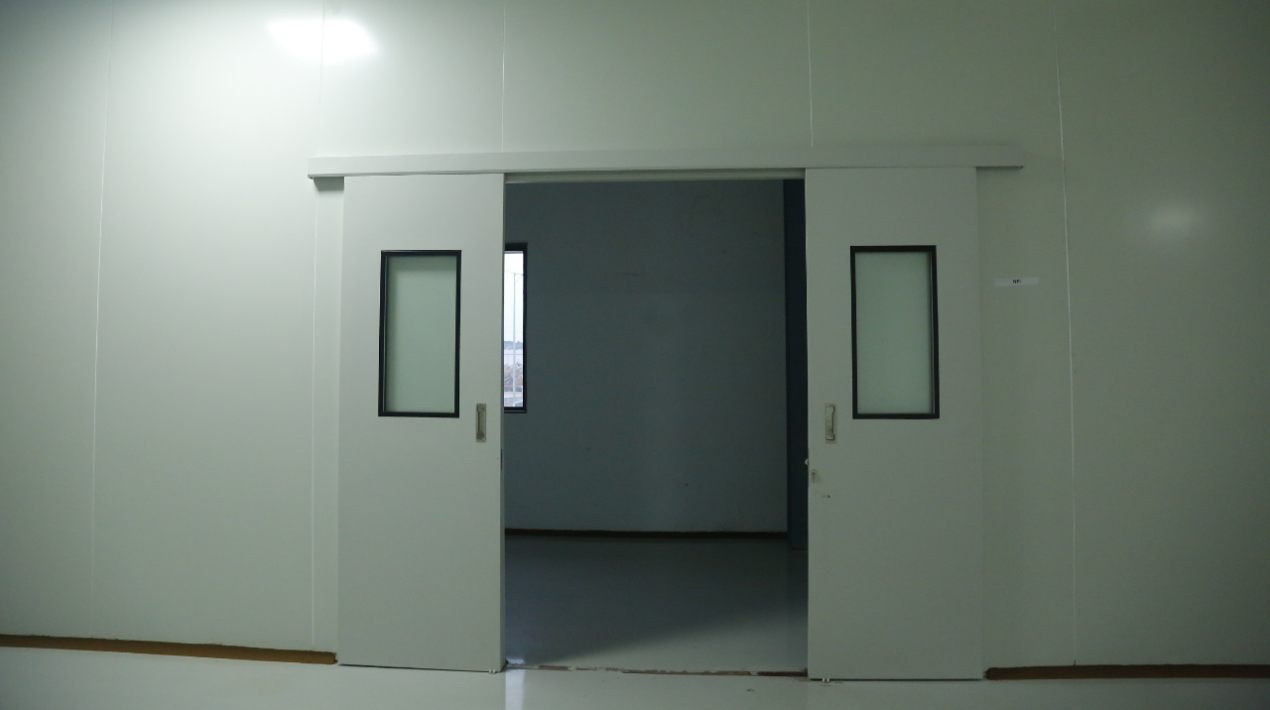

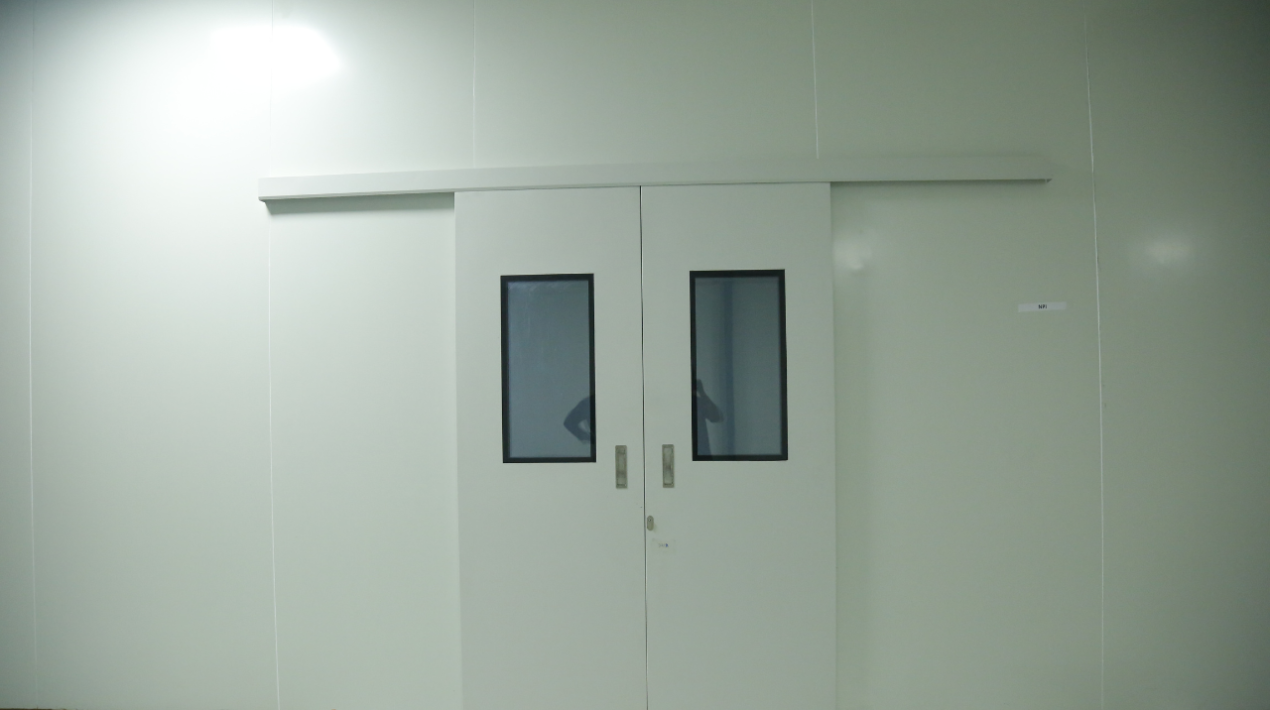

Sliding door systems with soft-close and manual/automated options.
Hermetically sealed door systems for high containment areas (Class 1 – Class 100K).
Masonry doors are heavy-duty doors built into brick or concrete walls for strength, durability, and security
Cleanroom doors are precision-sealed doors designed to maintain hygiene, pressure control, and contamination-free environments.

Key Features of Avanteclad Cleanroom Doors

Material Construction: High-quality galvanized steel or aluminum profiles with powder-coated or stainless-steel finishes (SS 304/316) for corrosion resistance and cleanability.
Flush Design: Door leaf and frame are flush with cleanroom walls for a seamless and contamination-free surface.
Integrated Gasket Sealing: High-performance EPDM or silicone gaskets for airtight closure and enhanced pressure differentials.
View Panel Integration: Double-glazed toughened glass view panels, factory-flushed within the door leaf.
Drop Seal Mechanisms: Optional bottom drop seals for improved air leakage control.
Hardware & Accessories: SS 304 hinges, panic bars, door closers, and cleanroom-compatible accessories.
Fire and ESD Compliance: Options available for EN13501-certified fire resistance and ESD-safe environments.

Get a Quote

Looking for modular wall solutions tailored to your industry? Fill out the form below and our team will get back to you with a customized quote

Need more help?

011-45508664

Business Benefits of Avanteclad Cleanroom Doors

Enhanced Contamination Control

Airtight sealing reduces cross-contamination risks and maintains pressure gradients.

Operational Reliability

Heavy-duty construction ensures long service life and minimal maintenance.

Optimized Site Installation

Pre-engineered frames and flush-mounted panels reduce site-level alignment and finishing work.

Regulatory Compliance

Designed to meet GMP, FDA, and ISO 14644 requirements, reducing validation risks.

Scalable and Replaceable

Non-progressive design allows easy removal or replacement of door panels without structural disruptions.

Cleanroom View Panels – Clarity with Containment

Avanteclad’s view panels are engineered for optical clarity, safety, and cleanroom compatibility. Each panel is designed for flush integration within wall partitions or doors, ensuring a smooth, particle-free surface.

Construction

Toughened, double-glazed glass panels (as per project specifications).

Flush-Fit Design

Fully factory-sealed edges for seamless wall integration.

Antistatic Coating

Optional ESD-safe coating for semiconductor and electronics facilities.

Easy Maintenance

Non-shedding, smooth surfaces with no sharp edges or cavities.

Customization

Sizes and glazing options tailored to visibility and safety requirements.

Industry Applications

Pharmaceuticals & Life Sciences: Sterile manufacturing areas, laboratories, and isolator facilities.
Semiconductors & Electronics: Low-outgassing doors and panels for wafer fabs and assembly lines.
Solar PV & Advanced Manufacturing: Thermal-resistant and anti-static variants for energy plants.
Medical Devices & Diagnostics: Hygienic, scratch-resistant panels for Class 100–100K cleanrooms.
Food & FMCG: Washable doors with high corrosion resistance for hygienic environments.

Technical Specifications - Cleanroom Doors

Leaf Thickness: 42–46 mm
Frame Material: Extruded aluminum or GI with powder coating (RAL shades).
Infill Options: Rockwool, PUF, PIR, and honeycomb core for lightweight strength and thermal insulation.
Door Size Range:
Single-leaf: 900 x 2100 mm (standard).
Double-leaf: 1500 x 2100 mm (customizable).

Fire Rating: EN13501-certified variants (up to 120 minutes fire resistance).
Vision Panels: Single-glazed or double-glazed toughened glass, 6 mm – 12 mm thickness.
Accessories: SS 304 hinges, panic bars, door closers, SS handles and cleanroom-compatible accessories.

Technical Specifications – View Panels

Panel Thickness: View panels thickness will be matching the wall partition thickness.
Glazing Options: Clear toughened glass and polycarbonate inserts.
Edge Treatment: Factory-sealed with PU sealants for particle-free surfaces.
Dimensions: Standard – 400 x 800 mm; customized sizes available on request.
ESD Options: Conductive or antistatic coating (for semiconductor environments).

Projects Delivered - Renewsys

Client: Nitin Lifesciences
Scope: Delivered 80 units of cleanroom doors and 200 view panels for a Class 10K pharmaceutical production facility.
Execution Timeline: 6 weeks from design to site installation.
Outcome:Achieved zero air leakage tolerance during validation and reduced project assembly time by 25% (compared to conventional doors).

Why Avanteclad’s Cleanroom
Doors and Panels Stand Out

25+ Years of Expertise

Backed by ACES's turnkey cleanroom design and engineering capabilities.

Global Supply Chain Access

Sourcing specialized hardware and materials for unique industry demands.

Integration-Ready Design

Fully compatible with Avanteclad wall partition systems for end-to-end cleanroom solutions.

25+ Years of Expertise

Backed by ACES's turnkey cleanroom design and engineering capabilities.

High Manufacturing Capacity

21,000 cleanroom door units annually, ensuring reliable delivery timelines.

Global Supply Chain Access

Sourcing specialized hardware and materials for unique industry demands.

Integration-Ready Design

Fully compatible with Avanteclad wall partition systems for end-to-end cleanroom solutions.

Customization That Works for Your Facility

Every cleanroom has unique operational needs. Avanteclad offers fully customized dimensions, glazing options, hardware configurations, and ESD/fire-rated variants, ensuring every door and view panel aligns with your process flow, compliance requirements, and aesthetic expectations.
