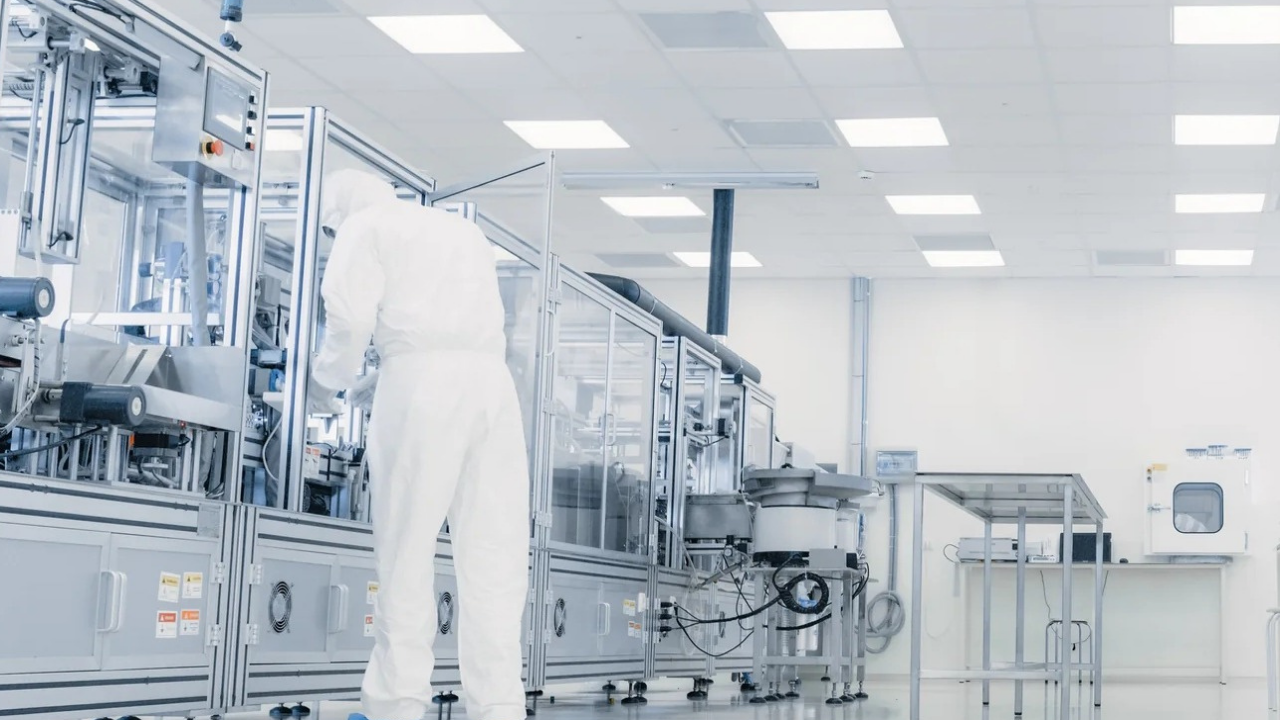

Modular partitions engineered for durability, compliance, and adaptability.
Key Features
Specifications
50, 80 mm
0.6 mm
Rockwool
1200 x 1200 mm/ 1200 x 2400 mm
At site cutouts
50, 80 mm
0.6 mm
Rockwool
1200 x 1200 mm/ 1200 x 2400 mm
At site cutouts

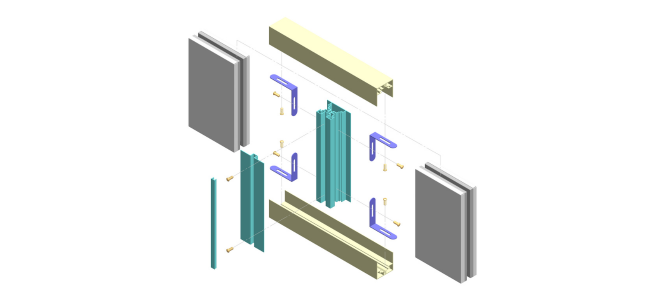

Our Stud Wall Panel System offers a cost-effective and flexible solution for cleanroom demountable wall applications. Designed for efficiency and high-end cleanroom compatibility, it meets stringent requirements with ease.
Specifications
50 mm thick Aluminum Honeycomb
0.5 mm PE roll-coated steel, non-conductive surface with protective film.
Aluminum honeycomb (21 mm core size, 0.05 mm foil thickness).
Polyurethane base.
50 mm thick Aluminum Honeycomb
0.5 mm PE roll-coated steel, non-conductive surface with protective film.
Aluminum honeycomb (21 mm core size, 0.05 mm foil thickness).
Polyurethane base.

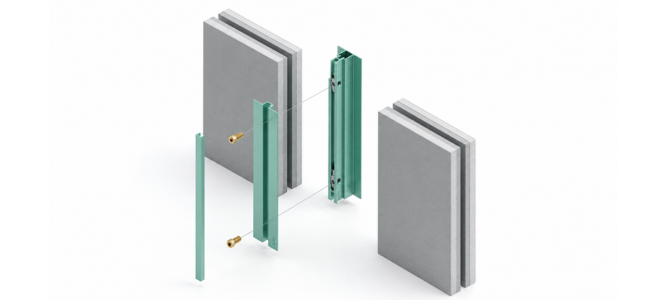

Our Stud-less Wall Panel System are designed with a special aluminum profile system, ensuring quick installation. Suitable for Cleanroom Class 1 to Class 100K.
50 mm thick Aluminum Honeycomb
0.5 mm PE roll-coated steel
Aluminum honeycomb (21 mm core size)
EN13501 non-combustible
50 mm thick Aluminum Honeycomb
0.5 mm PE roll-coated steel
Aluminum honeycomb (21 mm core size)
EN13501 non-combustible

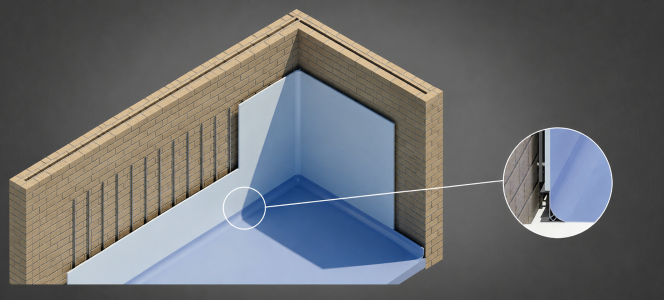

AMSPL offers Cladding Wall Panel with ease of installation, durability, and superior finish. Designed for environments from Class 1K to Class 100K, cladded to civil structure walls.
Specifications
Aluminium Honeycomb (7mm or 12mm thickness)
19mm Aluminium Honeycomb
0.5mm PE Roll Coated Steel Skin
Non-combustible material
Aluminium Honeycomb (7mm or 12mm thickness)
19mm Aluminium Honeycomb
0.5mm PE Roll Coated Steel Skin
Non-combustible material
Primary Grid System
T-Grid 50
T-Grid 70
Secondary Grid System
D-Grid (Grid Size: 1200 x 2400 mm)
Hanging Arrangement with Primary Ceiling

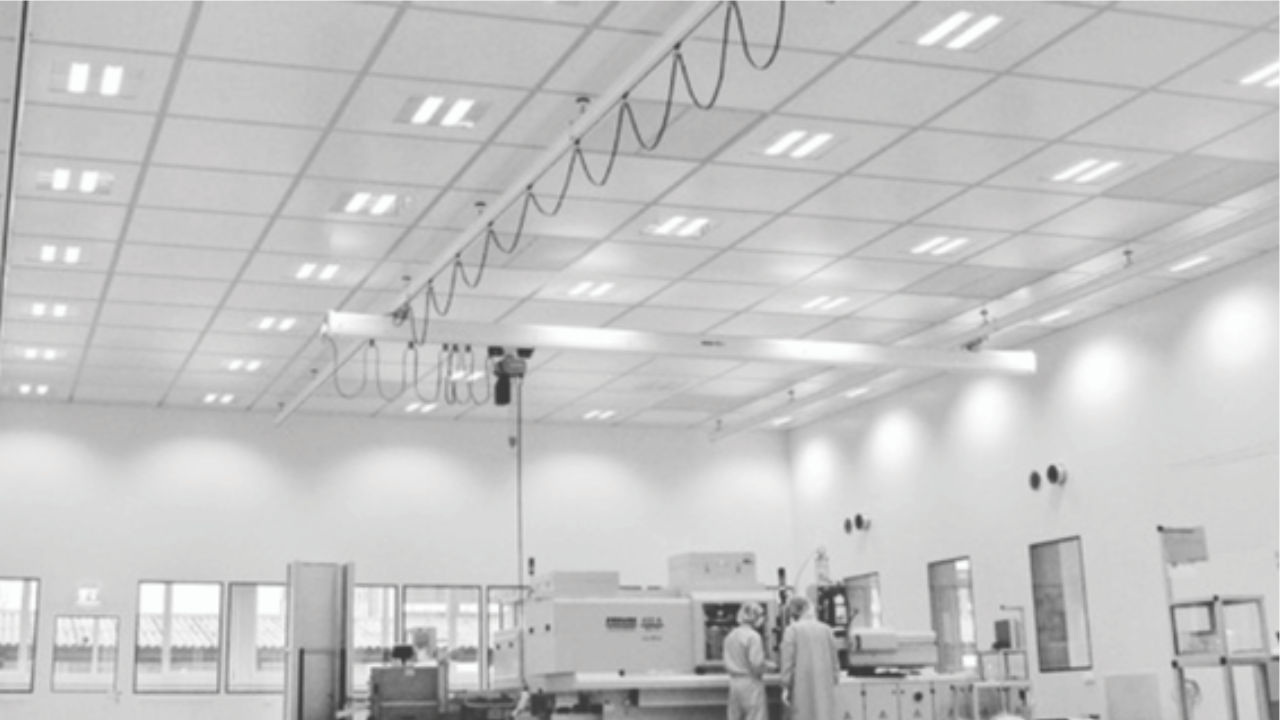

Our Walkable Ceiling Grid System provides a robust, versatile solution for heavy-duty cleanroom environments, designed to support loads such as live load, utility racking, and FFUs. It ensures faster assembly and efficient installation with solid aluminium alloy cross connectors and one-way locking T-shape bolts, minimizing construction time. Suitable for Cleanroom Class 1 to Class 100K, ensuring a clean environment.
Specifications
Height: 70mm, Width: 55mm, Material: Aluminium Alloy (6063-T5)
30mm thick Aluminium Honeycomb Ceiling Panel
0.5mm PE Roll Coated (non-conductive, grey-white RAL 9010)
Aluminium Honeycomb (13mm cell size, 0.06mm foil thickness)
Polyurethane-based adhesive
600x1200mm or 1200x1200mm
Height: 70mm, Width: 55mm, Material: Aluminium Alloy (6063-T5)
30mm thick Aluminium Honeycomb Ceiling Panel
0.5mm PE Roll Coated (non-conductive, grey-white RAL 9010)
Aluminium Honeycomb (13mm cell size, 0.06mm foil thickness)
Polyurethane-based adhesive
600x1200mm or 1200x1200mm

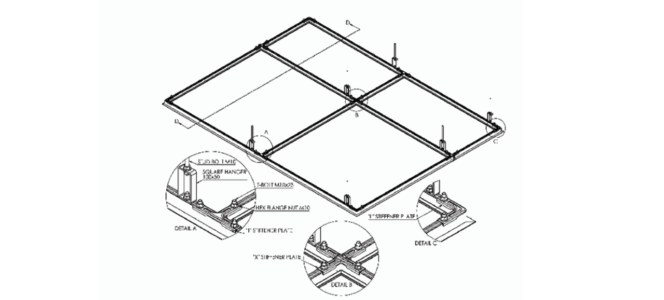

Our Non-Walkable Ceiling Grid System offers a comprehensive solution for cleanroom ceilings designed to carry lightweight loads. It ensures quick and easy assembly with steel cross connectors and one-way locking T-shape bolts, resulting in efficient installation and reduced construction time. The system is non-progressive, demountable, and easily relocatable. Suitable for Cleanrooms Class 100 to Class 100K environments.
Specifications
Light Duty, Height: 35mm, Width: 38mm, Material: Aluminium Alloy (6065-T5)
Ceiling Blank Panel, Non-combustible
Cold roll metal sheet, thickness 1.0mm or 1.2mm, powder-coated finish
570x1170mm or 1170x1170mm
Light Duty, Height: 35mm, Width: 38mm, Material: Aluminium Alloy (6065-T5)
Ceiling Blank Panel, Non-combustible
Cold roll metal sheet, thickness 1.0mm or 1.2mm, powder-coated finish
570x1170mm or 1170x1170mm
Our Flushed Grid Ceiling System provides a seamless, cleanroom ceiling solution, where ceiling panels are securely clamped between suspended profiles, ensuring a smooth, flush surface. Filter boxes or HEPA modules are integrated directly into the panels, with no visible ceiling tee profiles after installation, resulting in a neat and continuous ceiling surface. Suitable for Cleanrooms: Ideal for environments from Class 100 to Class 100K.
Specifications
Height: 90mm, Width: 33mm, Material: Aluminium Alloy (6065-T5)
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Polyurethane-based adhesive
50mm thickness
Height: 90mm, Width: 33mm, Material: Aluminium Alloy (6065-T5)
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Polyurethane-based adhesive
50mm thickness

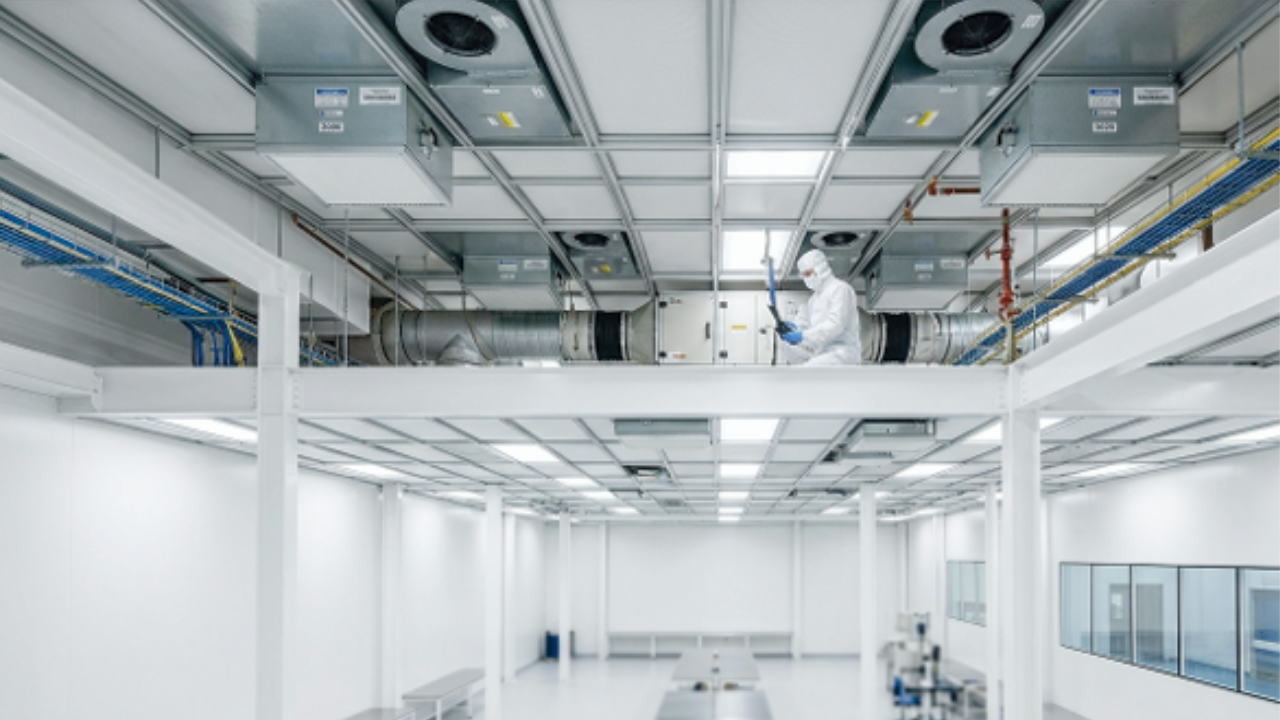

Our Plenum Ceiling System is designed for cleanroom environments, featuring a structure that connects with plenum ceiling tees and aluminium connectors. Ceiling panels are securely clamped between suspended profiles, and the ceiling tee’s bottom part includes a trough for supporting thread rods, enabling a secondary ceiling grid structure for added support and functionality. Suitable for Cleanroom Class 100 to Class 100K environments.
Specifications
Height: 90mm, Width: 62mm, Material: Aluminium Alloy (6063-T5)
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Polyurethane-based adhesive
50mm thickness
Height: 90mm, Width: 62mm, Material: Aluminium Alloy (6063-T5)
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Polyurethane-based adhesive
50mm thickness
Section : 56 x 55 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 150 kg/sqm
Section : 56 x 70 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 250 kg/sqm
Section : 60 x 85 mm
Grid Size : 1200 x 2400 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 450 kg/sqm
T-Grid 55
Section : 56 x 55 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 150 kg/sqm
T-Grid 56
Section : 56 x 70 mm
Grid Size : 1200 x 1200 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 250 kg/sqm
D-Grid
Section : 60 x 85 mm
Grid Size : 1200 x 2400 mm
Grade : 6063-T5
Finish : Powder Coated/Anodizing Load Bearing
Capacity : 450 kg/sqm

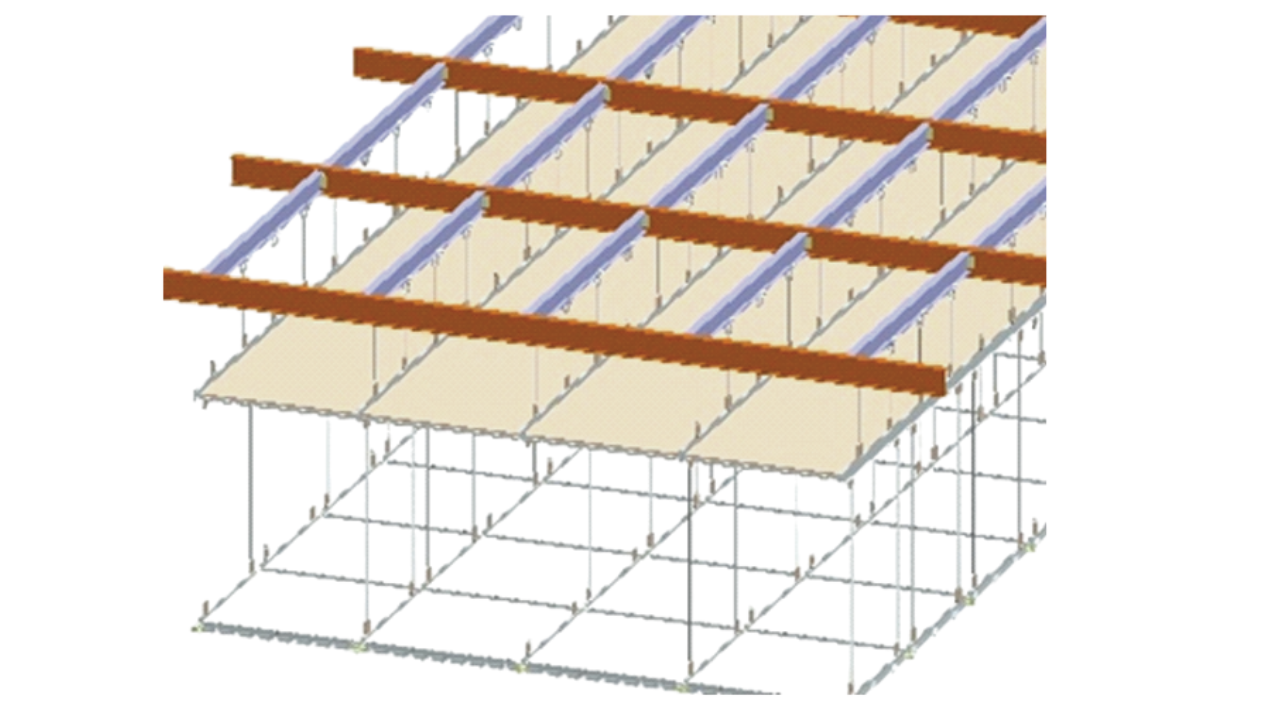

Hanging Arrangement With Primary Ceiling
Primary Grid System
T-Grid 50
T-Grid 70
Secondary Grid System
D-Grid (Grid Size: 1200 x 2400 mm)
Hanging Arrangement with Primary Ceiling
Specifications
Panel Type : Non-Progressive and Progressive options
Panel Thickness : 50, 80,100 mm
Infill : Rockwool, PUF, PIR, Paper Honeycomb
Height : Up to 6 mtr.
Width : Standard – 1200 mm & Non-Standard
Accessories
Floor Track : Raised / C Type as per application
Cutouts : Customized factory-made cutouts With an option of at site cutouts too
Sealant : Food-grade Silicon
Inbuilt Services : Conduits, Cutouts, Riser, Service panels, Modules/Magnehelic gauges
Primary Grid System
T-Grid 50
T-Grid 70
Secondary Grid System
D-Grid (Grid Size: 1200 x 2400 mm)
Hanging Arrangement with Primary Ceiling
Key Features
Specifications
50, 80 mm
0.6 mm
Rockwool
At site cutouts
50, 80 mm
0.6 mm
Rockwool
1200 x 1200 mm/ 1200 x 2400 mm
At site cutouts
50, 80 mm
0.6 mm
Rockwool
1200 x 1200 mm/ 1200 x 2400 mm
At site cutouts
Specifications
50 mm thick Aluminum Honeycomb
0.5 mm Polyester color-coated steel, non-conductive surface with protective film.
Aluminum honeycomb
(21 mm cell size, 0.05 mm foil thickness).
Polyurethane base.
Our Stud-less Wall Panel System are designed with a special aluminum profile system, ensuring quick installation. Suitable for Cleanroom Class 1 to Class 100K.
50 mm thick Aluminum Honeycomb
0.5 mm Polyester color-coated steel
Aluminum honeycomb
(21 mm core cell size)
EN13501 non-combustible
AMSPL offers Cladding Wall Panel with ease of installation, durability, and superior finish. Designed for environments from Class 1K to Class 100K, cladded to civil structure walls.
Specifications
Aluminium Honeycomb
(6 mm or 12 mm thickness)
0.5 mm Polyester color-coated steel
Aluminum honeycomb
(10 mm core cell size)
Non-combustible material
Our Walkable Ceiling Grid System provides a robust, versatile solution for heavy-duty cleanroom environments, designed to support loads such as live load, utility racking, and FFUs. It ensures faster assembly and efficient installation with solid aluminium alloy cross connectors and one-way locking T-shape bolts, minimizing construction time. Suitable for Cleanroom Class 1 to Class 100K, ensuring a clean environment.
Specifications
30 mm thick Aluminium Honeycomb Ceiling Panel
0.5 mm Polyester color-coated steel
Aluminium Honeycomb
(10 mm core cell size,
0.06 mm foil thickness)
Height: 70 mm,
Width: 55 mm - 56 mm, Material: Aluminium Alloy (6063-T5)
30mm thick Aluminium Honeycomb Ceiling Panel
0.5mm PE Roll Coated (non-conductive, grey-white RAL 9010)
Aluminium Honeycomb (13mm cell size, 0.06mm foil thickness)
Height: 70mm, Width: 65mm, Material: Aluminium Alloy (6063-T5)
Our Non-Walkable Ceiling Grid System offers a comprehensive solution for cleanroom ceilings designed to carry lightweight loads. It ensures quick and easy assembly with steel cross connectors and one-way locking T-shape bolts, resulting in efficient installation and reduced construction time. The system is non-progressive, demountable, and easily relocatable. Suitable for Cleanrooms Class 100 to Class 100K environments.
Specifications
Ceiling Blank Panel, Non-combustible
Cold roll metal sheet, thickness 1.0 mm or 1.2 mm, powder-coated finish
570 x 1170 mm or
1170 x 1170 mm
Light Duty,
Height: 35 mm - 55 mm,
Width: 38 mm - 56 mm, Material: Aluminium Alloy (6065-T5)
Our Plenum Ceiling System is designed for cleanroom environments, featuring a structure that connects with plenum ceiling tees and aluminium connectors. Ceiling panels are securely clamped between suspended profiles, and the ceiling tee’s bottom part includes a trough for supporting thread rods, enabling a secondary ceiling grid structure for added support and functionality. Suitable for Cleanroom Class 100 to Class 100K environments.
Specifications
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Height: 90mm, Width: 62mm, Material: Aluminium Alloy (6063-T5)
Height: 70mm, Width: 55mm, Material: Aluminium Alloy (6063-T5)
30mm thick Aluminium Honeycomb Ceiling Panel
0.5mm PE Roll Coated (non-conductive, grey-white RAL 9010)
Aluminium Honeycomb (13mm cell size, 0.06mm foil thickness)
Polyurethane-based adhesive
600x1200mm or 1200x1200mm
Height: 90mm, Width: 62mm, Material: Aluminium Alloy (6063-T5)
50mm Rock Wool Panel, edge sealed with 0.8mm GI sheet framework
0.5mm PE Roll Coated Steel Skin (non-conductive, RAL 9010)
Rock Wool Slab, Density 100kg/m³
Polyurethane-based adhesive
50mm thickness
Our Non-Walkable Ceiling Grid System offers a comprehensive solution for cleanroom ceilings designed to carry lightweight loads. It ensures quick and easy assembly with steel cross connectors and one-way locking T-shape bolts, resulting in efficient installation and reduced construction time. The system is non-progressive, demountable, and easily relocatable. Suitable for Cleanrooms Class 100 to Class 100K environments.
Specifications
Our Plenum Ceiling System is designed for cleanroom environments, featuring a structure that connects with plenum ceiling tees and aluminium connectors. Ceiling panels are securely clamped between suspended profiles, and the ceiling tee’s bottom part includes a trough for supporting thread rods, enabling a secondary ceiling grid structure for added support and functionality. Suitable for Cleanroom Class 100 to Class 100K environments.
Specifications
